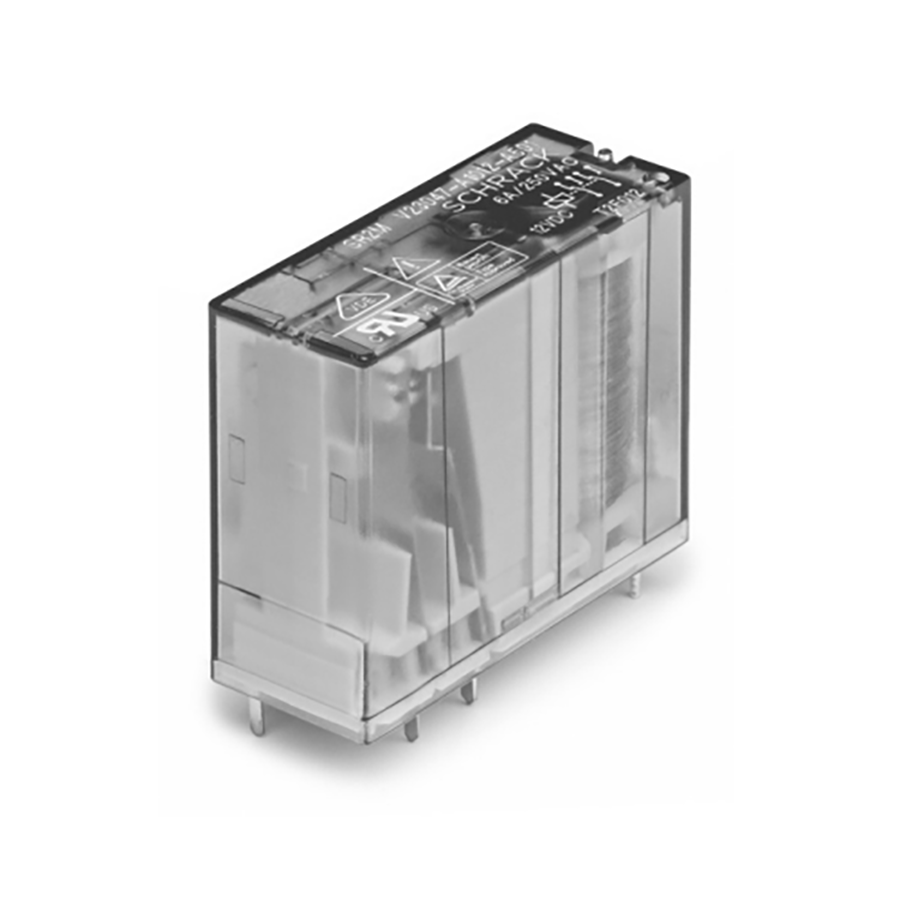

1-1393258-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1393258-5
Datasheet:
Description:
Relays Through Hole Coil Current:29.16 mA Contact Current Rating:6 A DPDT Coil Voltage (DC):24 V Safety 700 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 29 mm |
| Width | 12.6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 8 |
| Height | 25.5 mm |
| Circuit Type | |
| Packaging | Tube |
| Voltage Rating | |
| Depth | 12.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 20 g |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Current Rating | 6 A |
| Max Current Rating | 6 A |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | |
| Number of Contacts | 2 |
| ELV | Compliant |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | DPDT |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 29.16 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 823 Ω |
| Relay Type | Safety |
| Contact Current Rating | 6 A |
| switching current | 6 A |
| Termination Style | PC Pin |
| Switching Voltage | 400 VAC |
| Coil Power | 700 mW |
| Coil Voltage (AC) | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 2.4 V |
| Contact Form | DPDT (2 Form C) |
| Coil Voltage | 24 VDC |
Stock: 1200
Distributors
pcbx
pcbxUnit Price$7.85424
Ext.Price$7.85424
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.85424 | $7.85424 |
| 10 | $7.23441 | $72.34410 |
| 25 | $6.87708 | $171.92700 |
| 50 | $6.53740 | $326.87000 |
| 100 | $6.21448 | $621.44800 |
| 300 | $5.91912 | $1775.73600 |
| 500 | $5.63779 | $2818.89500 |
| 1000 | $5.36981 | $5369.81000 |
